TI900 Silicone Based Thermally Conductive Insulators Slide 4

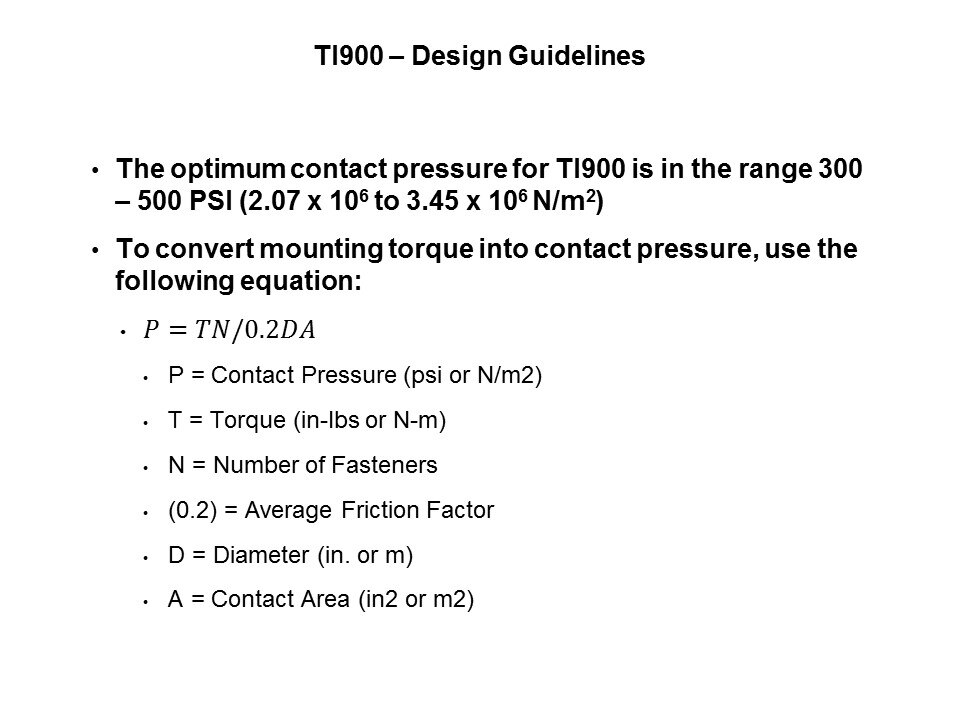

It is important to follow key design criteria when designing with TI900. It is essential that the material is used under pressure, ideally this should be within the range 300 – 500 PSI. This will ensure the best thermal performance and longest lifetime.

PTM Published on: 2012-02-21
